Simulate out-of-plane rotation during line-scanning acquisition

In this tutorial, we simulate how image stacks appear when the scanning happens across a plane that is not aligned with the imaging plane.

We will:

• Generate synthetic 2D frames with circular cell structures.

• Simulate line-by-line rotations with varying angles.

• Visualise how the appearance of the image is distorted when the rotation plane is tilted or oriented differently.

• Display all frames and a max projection.

Imports

from pathlib import Path

import matplotlib.pyplot as plt

from derotation.simulate.line_scanning_microscope import Rotator
from derotation.simulate.synthetic_data import SyntheticData

Define rotation + plotting functions

def rotate_image_stack(
    plane_angle: float = 0,
    pad: int = 20,
    orientation: float = 0,
):
    """
    Create and rotate a synthetic image stack using the specified
    rotation parameters.
    """
    s_data = SyntheticData(
        radius=1,
        second_cell=False,
        pad=pad,
        background_value=80,
        num_frames=50,
    )
    s_data.image = s_data.create_sample_image_with_cells()
    image_stack = s_data.create_image_stack()
    _, angles = s_data.create_rotation_angles(image_stack.shape)

    rotator = Rotator(
        angles,
        image_stack,
        rotation_plane_angle=plane_angle,
        blank_pixel_val=0,
        rotation_plane_orientation=orientation,
    )
    rotated_image_stack = rotator.rotate_by_line()

    return image_stack, rotated_image_stack, rotator, image_stack.shape[0]


def make_plot(
    rotated_image_stack,
    title="",
):
    """
    Plot all frames of the rotated stack and their associated angles.
    """
    fig, ax = plt.subplots(figsize=(12, 6))

    max_proj = rotated_image_stack.max(axis=0)
    ax.imshow(max_proj, cmap="gray", vmin=0, vmax=255)
    ax.plot(
        max_proj.shape[1] / 2,
        max_proj.shape[0] / 2,
        "rx",
        markersize=10,
    )
    ax.set_title("Max projection")
    ax.axis("off")

    plt.tight_layout()
    plt.suptitle(title, fontsize=14)
    plt.subplots_adjust(top=0.92)
    plt.show()

Create output folder

Path("debug").mkdir(exist_ok=True)

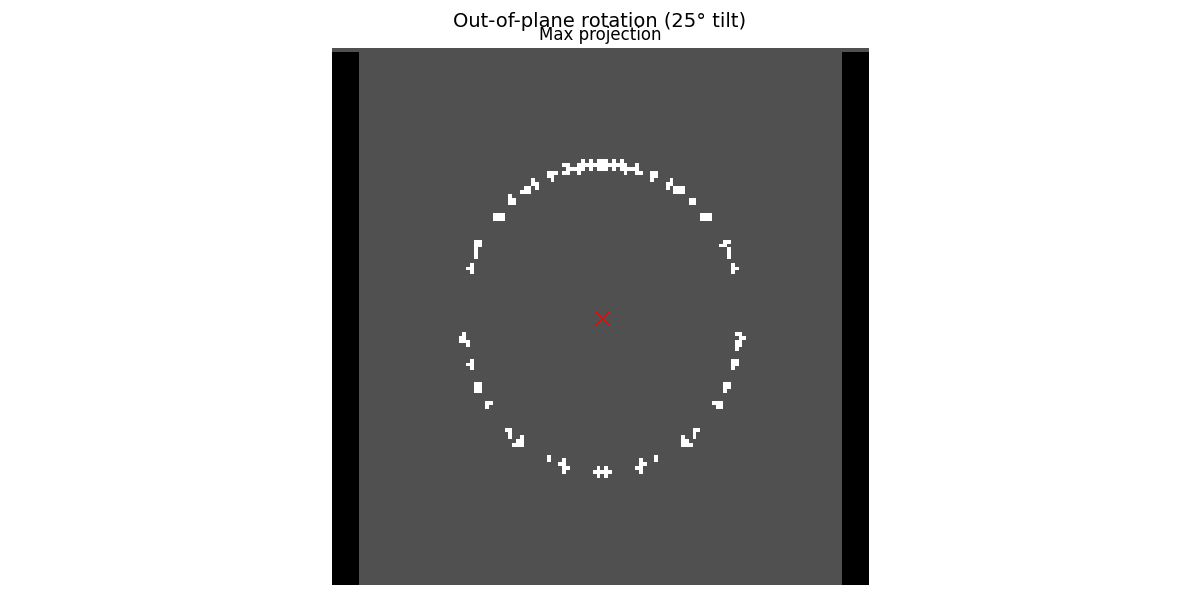

Example 1 – rotation out of imaging plane

Here we simulate a 25° tilt in the rotation plane, with no orientation shift. This simulates a case where the imaging scan plane is not aligned with the rotation axis.

image_stack, rotated_image_stack, rotator, num_frames = rotate_image_stack(
    plane_angle=25, pad=20
)

print("Rotation plane angle: 25°")
print("Rotation orientation: 0°")

make_plot(
    rotated_image_stack,
    title="Out-of-plane rotation (25° tilt)",
)

  0%|          | 0/50 [00:00<?, ?it/s]
  2%|▏         | 1/50 [00:00<00:05,  8.29it/s]
  4%|▍         | 2/50 [00:00<00:05,  8.22it/s]
  6%|▌         | 3/50 [00:00<00:05,  8.22it/s]
  8%|▊         | 4/50 [00:00<00:05,  8.24it/s]
 10%|█         | 5/50 [00:00<00:05,  8.23it/s]
 12%|█▏        | 6/50 [00:00<00:05,  8.26it/s]
 14%|█▍        | 7/50 [00:00<00:05,  8.22it/s]
 16%|█▌        | 8/50 [00:00<00:05,  8.22it/s]
 18%|█▊        | 9/50 [00:01<00:04,  8.25it/s]
 20%|██        | 10/50 [00:01<00:04,  8.25it/s]
 22%|██▏       | 11/50 [00:01<00:04,  8.23it/s]
 24%|██▍       | 12/50 [00:01<00:04,  8.20it/s]
 26%|██▌       | 13/50 [00:01<00:04,  8.17it/s]
 28%|██▊       | 14/50 [00:01<00:04,  8.16it/s]
 30%|███       | 15/50 [00:01<00:04,  8.17it/s]
 32%|███▏      | 16/50 [00:01<00:04,  8.20it/s]
 34%|███▍      | 17/50 [00:02<00:04,  8.24it/s]
 36%|███▌      | 18/50 [00:02<00:03,  8.24it/s]
 38%|███▊      | 19/50 [00:02<00:03,  8.22it/s]
 40%|████      | 20/50 [00:02<00:03,  8.24it/s]
 42%|████▏     | 21/50 [00:02<00:03,  8.22it/s]
 44%|████▍     | 22/50 [00:02<00:03,  8.23it/s]
 46%|████▌     | 23/50 [00:02<00:03,  8.22it/s]
 48%|████▊     | 24/50 [00:02<00:03,  8.23it/s]
 50%|█████     | 25/50 [00:03<00:03,  8.23it/s]
 52%|█████▏    | 26/50 [00:03<00:02,  8.23it/s]
 54%|█████▍    | 27/50 [00:03<00:02,  8.19it/s]
 56%|█████▌    | 28/50 [00:03<00:02,  8.20it/s]
 58%|█████▊    | 29/50 [00:03<00:02,  8.22it/s]
 60%|██████    | 30/50 [00:03<00:02,  8.21it/s]
 62%|██████▏   | 31/50 [00:03<00:02,  8.24it/s]
 64%|██████▍   | 32/50 [00:03<00:02,  8.21it/s]
 66%|██████▌   | 33/50 [00:04<00:02,  8.21it/s]
 68%|██████▊   | 34/50 [00:04<00:01,  8.24it/s]
 70%|███████   | 35/50 [00:04<00:01,  8.24it/s]
 72%|███████▏  | 36/50 [00:04<00:01,  8.22it/s]
 74%|███████▍  | 37/50 [00:04<00:01,  8.18it/s]
 76%|███████▌  | 38/50 [00:04<00:01,  8.16it/s]
 78%|███████▊  | 39/50 [00:04<00:01,  8.15it/s]
 80%|████████  | 40/50 [00:04<00:01,  8.15it/s]
 82%|████████▏ | 41/50 [00:04<00:01,  8.20it/s]
 84%|████████▍ | 42/50 [00:05<00:00,  8.23it/s]
 86%|████████▌ | 43/50 [00:05<00:00,  8.22it/s]
 88%|████████▊ | 44/50 [00:05<00:00,  8.20it/s]
 90%|█████████ | 45/50 [00:05<00:00,  8.23it/s]
 92%|█████████▏| 46/50 [00:05<00:00,  8.22it/s]
 94%|█████████▍| 47/50 [00:05<00:00,  8.22it/s]
 96%|█████████▌| 48/50 [00:05<00:00,  8.22it/s]
 98%|█████████▊| 49/50 [00:05<00:00,  8.22it/s]
100%|██████████| 50/50 [00:06<00:00,  8.23it/s]
100%|██████████| 50/50 [00:06<00:00,  8.22it/s]
Rotation plane angle: 25°
Rotation orientation: 0°

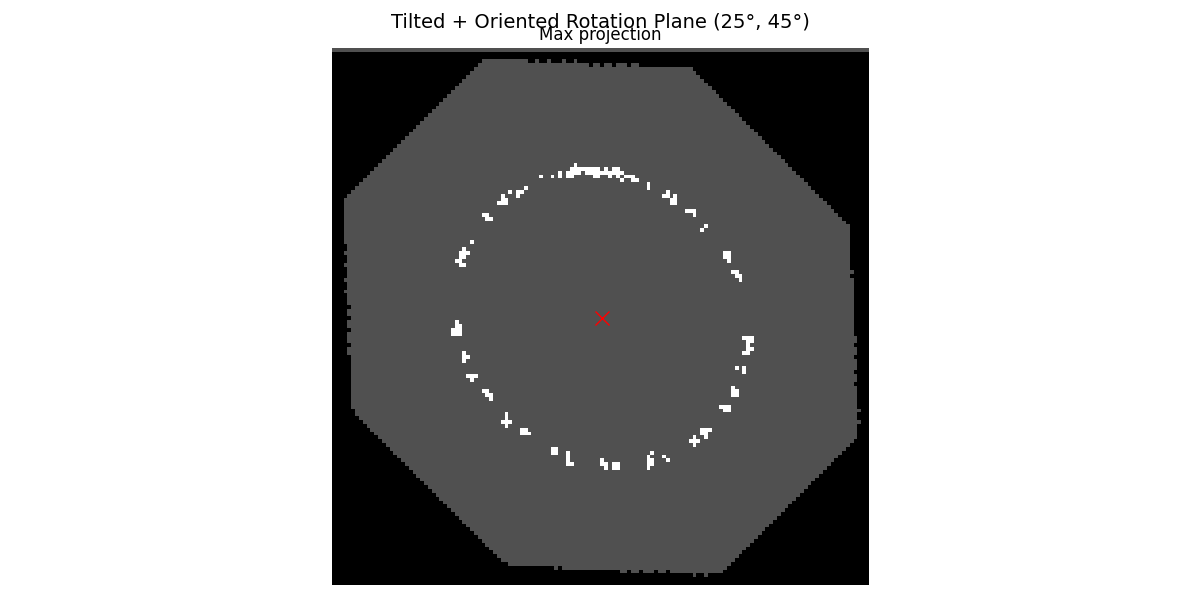

Example 2 – rotation + in-plane orientation

Now we also add a 45° orientation to the rotation plane, so it’s both tilted and diagonally oriented relative to the image.

image_stack, rotated_image_stack, rotator, num_frames = rotate_image_stack(
    plane_angle=25, pad=20, orientation=45
)

print("Rotation plane angle: 25°")
print("Rotation orientation: 45°")

make_plot(
    rotated_image_stack,
    title="Tilted + Oriented Rotation Plane (25°, 45°)",
)

  0%|          | 0/50 [00:00<?, ?it/s]
  2%|▏         | 1/50 [00:00<00:11,  4.17it/s]
  4%|▍         | 2/50 [00:00<00:11,  4.17it/s]
  6%|▌         | 3/50 [00:00<00:11,  4.17it/s]
  8%|▊         | 4/50 [00:00<00:11,  4.17it/s]
 10%|█         | 5/50 [00:01<00:10,  4.16it/s]
 12%|█▏        | 6/50 [00:01<00:10,  4.18it/s]
 14%|█▍        | 7/50 [00:01<00:10,  4.17it/s]
 16%|█▌        | 8/50 [00:01<00:10,  4.16it/s]
 18%|█▊        | 9/50 [00:02<00:09,  4.17it/s]
 20%|██        | 10/50 [00:02<00:09,  4.18it/s]
 22%|██▏       | 11/50 [00:02<00:09,  4.17it/s]
 24%|██▍       | 12/50 [00:02<00:09,  4.16it/s]
 26%|██▌       | 13/50 [00:03<00:08,  4.16it/s]
 28%|██▊       | 14/50 [00:03<00:08,  4.15it/s]
 30%|███       | 15/50 [00:03<00:08,  4.15it/s]
 32%|███▏      | 16/50 [00:03<00:08,  4.16it/s]
 34%|███▍      | 17/50 [00:04<00:07,  4.17it/s]
 36%|███▌      | 18/50 [00:04<00:07,  4.17it/s]
 38%|███▊      | 19/50 [00:04<00:07,  4.16it/s]
 40%|████      | 20/50 [00:04<00:07,  4.17it/s]
 42%|████▏     | 21/50 [00:05<00:06,  4.16it/s]
 44%|████▍     | 22/50 [00:05<00:06,  4.17it/s]
 46%|████▌     | 23/50 [00:05<00:06,  4.17it/s]
 48%|████▊     | 24/50 [00:05<00:06,  4.17it/s]
 50%|█████     | 25/50 [00:05<00:05,  4.17it/s]
 52%|█████▏    | 26/50 [00:06<00:05,  4.17it/s]
 54%|█████▍    | 27/50 [00:06<00:05,  4.17it/s]
 56%|█████▌    | 28/50 [00:06<00:05,  4.17it/s]
 58%|█████▊    | 29/50 [00:06<00:05,  4.18it/s]
 60%|██████    | 30/50 [00:07<00:04,  4.17it/s]
 62%|██████▏   | 31/50 [00:07<00:04,  4.18it/s]
 64%|██████▍   | 32/50 [00:07<00:04,  4.17it/s]
 66%|██████▌   | 33/50 [00:07<00:04,  4.17it/s]
 68%|██████▊   | 34/50 [00:08<00:03,  4.17it/s]
 70%|███████   | 35/50 [00:08<00:03,  4.18it/s]
 72%|███████▏  | 36/50 [00:08<00:03,  4.17it/s]
 74%|███████▍  | 37/50 [00:08<00:03,  4.16it/s]
 76%|███████▌  | 38/50 [00:09<00:02,  4.15it/s]
 78%|███████▊  | 39/50 [00:09<00:02,  4.15it/s]
 80%|████████  | 40/50 [00:09<00:02,  4.15it/s]
 82%|████████▏ | 41/50 [00:09<00:02,  4.16it/s]
 84%|████████▍ | 42/50 [00:10<00:01,  4.17it/s]
 86%|████████▌ | 43/50 [00:10<00:01,  4.17it/s]
 88%|████████▊ | 44/50 [00:10<00:01,  4.17it/s]
 90%|█████████ | 45/50 [00:10<00:01,  4.18it/s]
 92%|█████████▏| 46/50 [00:11<00:00,  4.17it/s]
 94%|█████████▍| 47/50 [00:11<00:00,  4.17it/s]
 96%|█████████▌| 48/50 [00:11<00:00,  4.17it/s]
 98%|█████████▊| 49/50 [00:11<00:00,  4.17it/s]
100%|██████████| 50/50 [00:12<00:00,  4.16it/s]
100%|██████████| 50/50 [00:12<00:00,  4.17it/s]
Rotation plane angle: 25°
Rotation orientation: 45°

Conclusion

This simulation helps us visualise how image distortions appear during line-scanning acquisition when the imaging plane is misaligned with the physical rotation plane. The observed distortions depend on both the angle of the rotation plane and its orientation in space.
